In modern interior design, light is more than a functional element; it's an architectural material capable of sculpting space and influencing mood. While attention often gravitates towards ceiling fixtures, true design innovation is subtly occurring at floor level. LED skirting boards are at the core of this lighting revolution, imbuing walls with life and creating a striking "floating" effect within spaces at night.
This is not merely a DIY tutorial. It is a detailed blueprint designed to guide you through understanding and mastering the creation of a professional-grade LED skirting lighting system. Whether you are a homeowner meticulous about every detail or a designer aiming to elevate project quality, this guide provides all the necessary insights.
一: LED Skirting: Aesthetic and Functional Impact
Before committing time and resources, it's crucial to understand the specific value LED skirting can bring.
- Ambiance Creation: Imagine soft, ethereal light emanating gently from the floor, transforming sterile walls into a warm, inviting canvas. This indirect illumination instantly softens harsh lines, cultivating a comfortable and tranquil atmosphere akin to a high-end hotel.

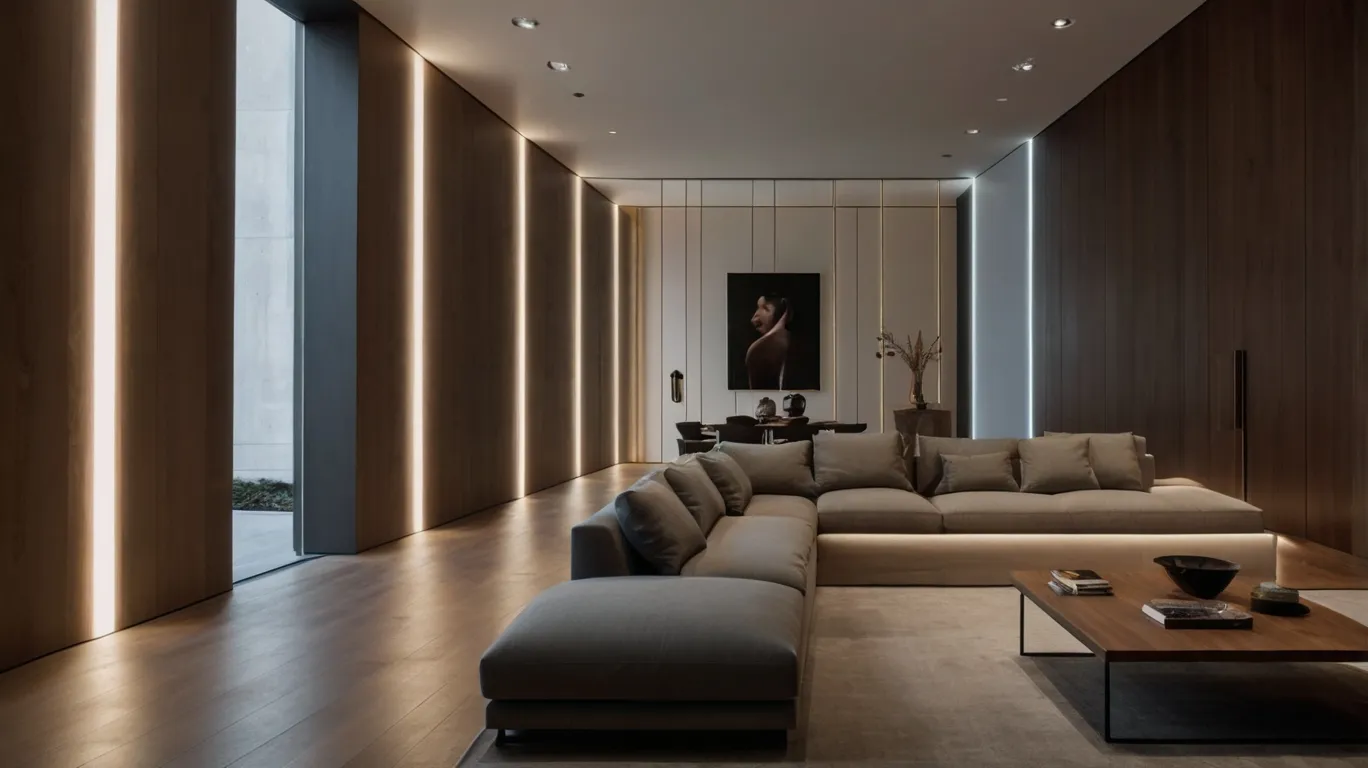

- Spatial Definition: By establishing a continuous horizontal light band at floor level, LED skirting visually extends space, making it appear broader and adding layers of depth. The classic "floating wall" effect is achieved by cleverly using light to break the physical connection between walls and floors.
- Functional Utility: At night, it serves as a gentle navigational path, eliminating the need for harsh overhead lights for safe passage through hallways, stairs, and bedrooms. For homes with children or the elderly, this represents a thoughtful and caring design consideration.
- Enhanced Immersion: In home theaters or gaming rooms, ambient floor lighting can significantly heighten the sense of immersion, elevating your entertainment experience to a new dimension.
er: Core Components: Professional Selection for LED Systems
An exceptional lighting system is built upon the precise selection of each individual component.

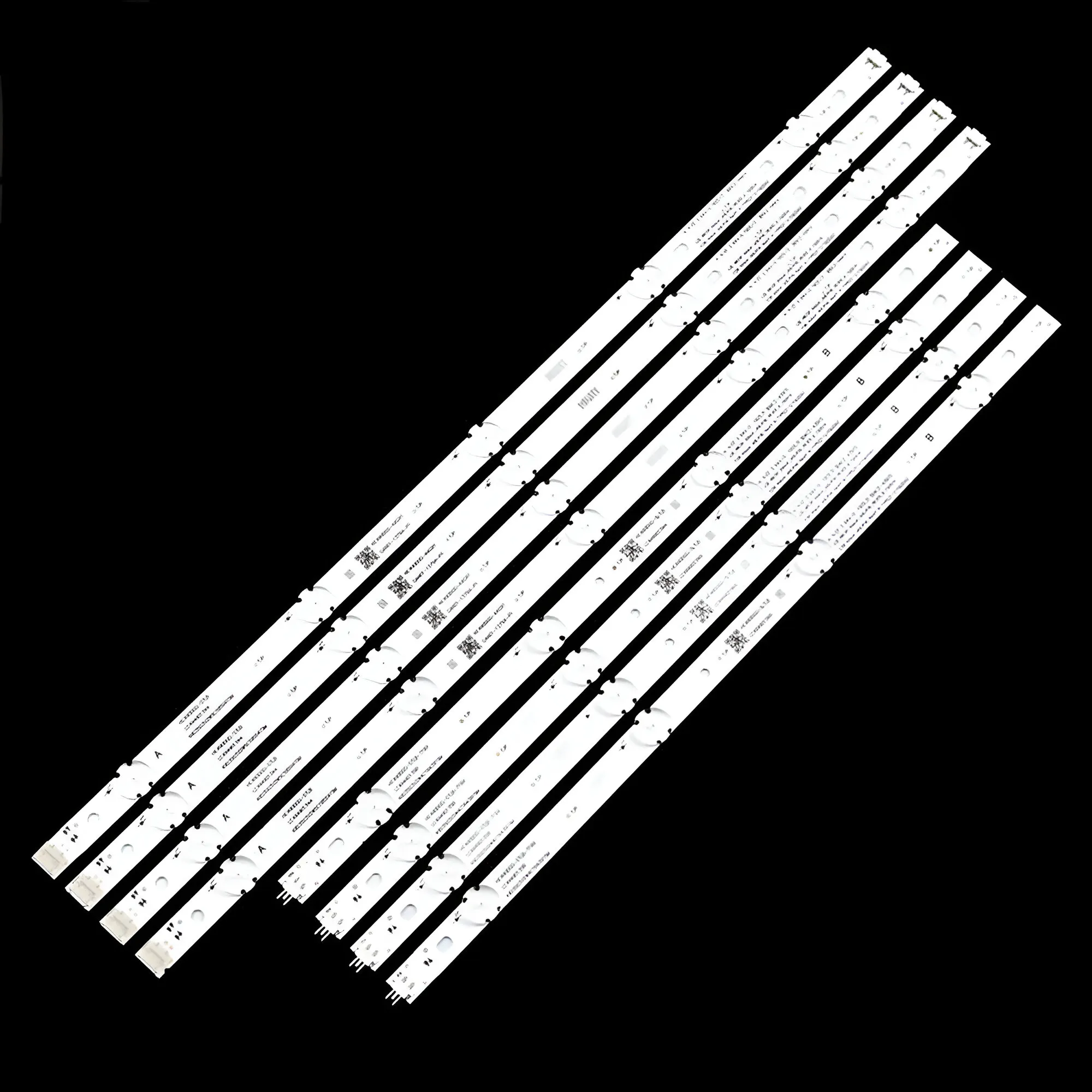

LED Strips: Specs and Selection Points
Choosing high-quality LED strips is fundamental to ensuring optimal lighting performance and system longevity. Focus on these five critical parameters:
- Chip Type (SMD): Defines the basic performance and intended application of the LED.
- SMD 2835: Efficiency leader for single-color illumination; low heat, uniform light.
- SMD 5050: Larger, brighter; often integrates RGB for color-changing effects.
- RGBW/RGBCCT: RGB with dedicated White (W) or tunable CCT chip for advanced color/temp control.
- LED Density (LEDs/m): Directly impacts light continuity and uniformity.
- 60 LEDs/m: Entry-level; slight "spotting" visible close up.
- 120 LEDs/m: Improved uniformity, minimal dark spots.(Recommended mainstream choice)
- 240+ LEDs/m (COB Strips): Premium choice, completely spotless, seamless linear light.
- Color Rendering Index (CRI): Measures true color revelation (0-100).
- CRI 80+: Basic industry standard.
- CRI 90+: Ensures vibrant, true-to-life colors.
- CRI 95+: Professional/museum-grade for ultimate color fidelity.
- Color Temperature (CCT): The perceived "mood" of the light.
- 2700K-3000K (Warm White): Cozy, relaxing for bedrooms/living rooms.
- 4000K (Natural White): Neutral, daylight-like for kitchens/studies.
- 5000K-6500K (Cool White): Crisp, modern for workshops/garages.
- Operating Voltage (V):
- 12V: Common, but limited single-run length (max 5m / 16ft) before voltage drop.
- 24V: Superior choice. Longer single runs (up to 10m / 32ft), less voltage drop.
Light Optimization: Channels and Diffusers
This is the pivotal step that elevates your lighting effect from standard to professional. You must utilize a combination of Aluminum Channel + PC Diffuser.
- Uniform Illumination: Milky PC Diffuser transforms LED dots into a soft, continuous linear light, eliminating hot spots.
- Strip Protection: Aluminum channel provides robust physical protection for the delicate LED strip.
- Efficient Heat Dissipation: Aluminum's thermal conductivity dissipates heat, slowing lumen depreciation and extending lifespan.
Power Supply and Controller: Component Matching
- Power Supply (Driver/Transformer):
- Wattage Calculation:
Total Wattage (W) = (Strip's W/m) × (Total Length in meters) × 1.2！The 20% buffer ensures stable, non-overloaded operation. - Brand and Certification: Select reputable brands with international safety certifications .
- Wattage Calculation:
- Controller:
- Basic Control: RF (Radio Frequency) remotes are superior to IR (Infrared) for flexibility.
- Smart Integration: Prioritize controllers supporting Wi-Fi or Zigbee. Zigbee (with hub) offers faster, more stable smart home integration.
- Professional Dimming: DALI or 0-10V systems offer precise, smooth control for high-end projects.
三: Installation Practice: Precise LED Skirting Procedures
You have two installation choices: DIY or professional installation.
If you choose to DIY, the following will be helpful to you!
Preparation Phase: Essential Tools and Materials Checklist
- Tools: Accurate miter saw, tape measure, wire strippers, electrical tape, construction adhesive gun, multimeter, spirit level.
- Materials: Pre-channeled skirting boards, selected LED strip, aluminum channels & diffusers, compatible power supply, controller, appropriately gauged electrical wire.

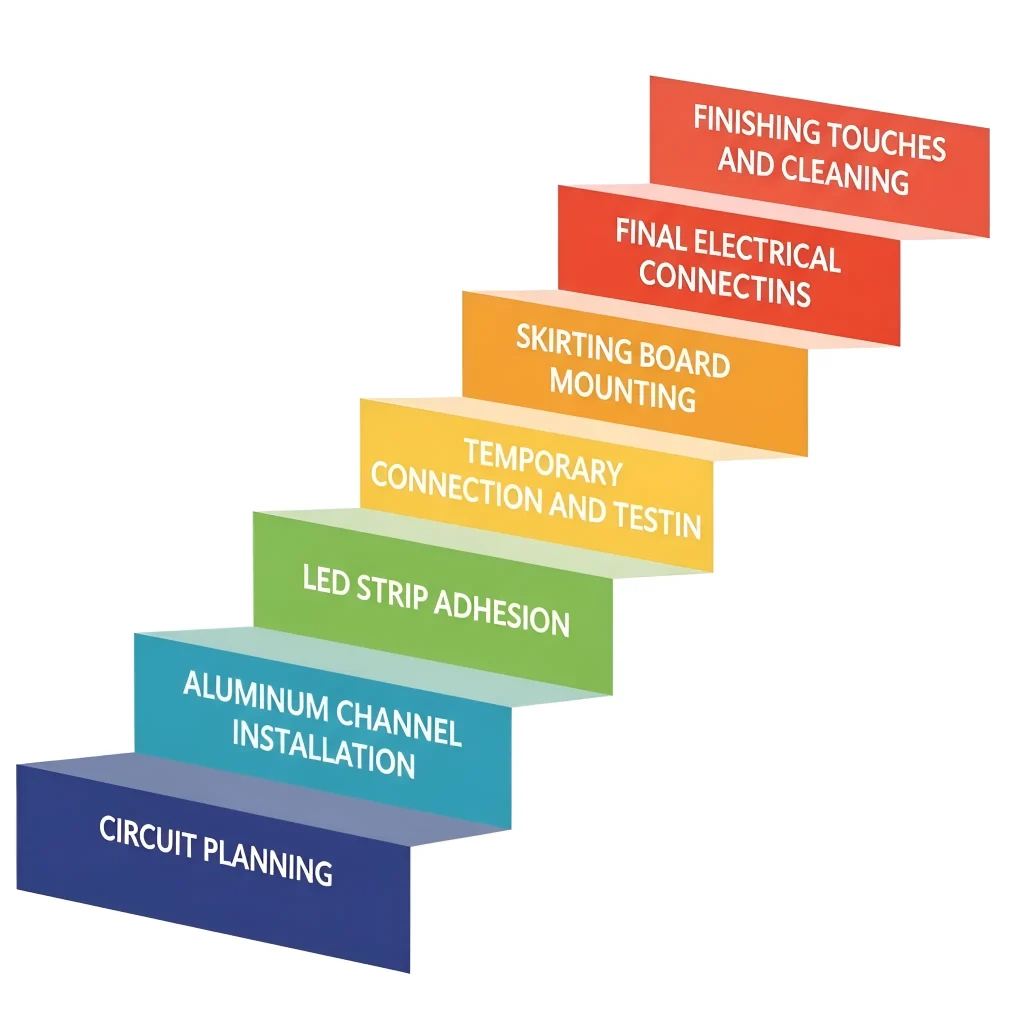

Detailed Installation Steps and Key Operational Points
- Circuit Planning: Critical first step. Determine hidden location for power supply/controller (e.g., behind cabinet, utility closet, ceiling access). Plan wire path. Always pre-install conduit for new builds/major renovations.
- Aluminum Channel Installation: Precisely cut channels to length, secure in skirting groove with adhesive/small screws.
- LED Strip Adhesion: Clean channel, adhere strip flat. At corners, use L-shaped solderless connectors or gentle "curved bend" (flexible strips only),strictly avoid sharp 90-degree folds.
- Temporary Connection and Testing: Before mounting skirting, perform a dry run. Connect strip to controller/power supply, test illumination, brightness, color adjustment.
- Skirting Board Mounting: Once tested, disconnect power. Apply S-shaped bead of construction adhesive to skirting back, mount firmly to wall.
- Final Electrical Connections: [SAFETY WARNING] Strongly recommended to be performed by a certified professional electrician. Connect pre-run wires to strip, ensure secure/insulated connections. Wire to controller/power supply.
- Finishing Touches and Cleaning: Snap on PC diffuser. Caulk seams for a seamless look. Clean up.
Expert Tips: Avoiding Common Installation Pitfalls
- Defeating Voltage Drop: For runs over 10m (24V) or 5m (12V), use parallel connection or dual-end power injection. Run separate wires from power supply to different strip segments for consistent brightness.
- Concealing the Power Supply: Often the largest, least aesthetic component. Optimal: plan hidden, ventilated space during renovation. Retrofit: use well-ventilated custom furniture or inconspicuous areas.
四: Investment Analysis: Budget Planning for LED Skirting
To understand potential expenditures, here's a cost estimation for a 20-meter (approx. 65 ft) installation. Prices are market estimates and vary by brand, vendor, and region. Skirting board material cost is excluded.
Budget Tier | Basic Quality | Recommended | Ultimate Performance |
|---|---|---|---|
Outcome | Basic linear lighting. | Uniform, high-quality light & smart control. | Ultimate quality & smart home integration. |
LED Strip (20m) | CRI 80+, 60/m, 12V | CRI 90+, 120/m or COB, 24V | CRI 95+, HD COB, 24V |
Est. Cost | $60 - $120 | $150 - $300 | $400+ |
Alu. Channel & Diffuser (20m) | Basic aluminum channel | Thicker channel, High-Tx PC diffuser | Premium recessed channel system |
Est. Cost | $40 - $80 | $80 - $150 | $200+ |
Power Supply (Driver) | Standard quality, low headroom | Reputable brand (e.g., Mean Well), Cert. | High-efficiency, long-warranty, premium. |
Est. Cost | $25 - $40 | $50 - $80 | $100+ |
Controller | Basic RF remote | Wi-Fi / Zigbee Smart | DALI / 0-10V Pro Dimming |
Est. Cost | $10 - $20 | $25 - $50 | $120+ |
Ancillaries (Wires, Connectors) | Standard accessories | High-Quality Wires, Branded Connectors | Engineering-Grade Wires & Connectors |
Est. Cost | $15 | $30 | $60+ |
TOTAL ESTIMATE | $150 - $275 | $335 - $610 | $880+ |
Key Recommendation: For most users seeking a high-quality home experience, the "Quality-Focused" tier offers the best cost-performance ratio, delivering vastly superior results within a reasonable budget.
五: Long-Term Management: Maintenance and Troubleshooting
Cleaning:
Periodically wipe diffuser with a dry, anti-static cloth. For stubborn stains, lightly spray neutral cleaner onto cloth (never directly). Always disconnect power before cleaning.
Troubleshooting (FAQs):
- Q: Section not illuminating?
- A: Usually damaged LED or loose solder joint. If modular, replace segment.
- Q: Whole strip flickering?
- A: 99% of cases, power supply issue (underpowered or failing). Verify wattage meets requirements.
- Q: Controller unresponsive?
- A: Check remote battery. For smart controllers, verify network connection and app settings.
Conclusion: Crafting Your Personalized Light and Shadow Space
LED skirting boards are more than a home improvement; they represent a creative expression of space. Through meticulous planning and informed selection, you can achieve lighting effects comparable to high-end design showcases. The outcome is not merely an initial "wow" factor, but a continuous enhancement of your living quality and visual enjoyment.
