Modern LED lights do not require a ballast. This common question arises from the process of upgrading older fluorescent fixtures, where the ballast was an essential component. The technologies are fundamentally different, and forcing them to work together introduces compromises. This guide explains the technical distinctions, details the available retrofit options, and clarifies the risks and benefits of each choice, empowering you to make an informed decision for your lighting system's performance and longevity.
What Is a Ballast and Why Do Fluorescent Lights Use It?
A ballast is a device required to operate gas-discharge lamps, including fluorescent and High-Intensity Discharge (HID) types. It serves two primary functions. First, it provides a high initial voltage to start the lamp, creating an electrical arc that ionizes the gas inside the tube. Without this initial surge, the lamp would not light up.
Second, once the lamp is running, the ballast regulates the electrical current flowing through it. Gas-discharge lamps have a characteristic known as negative resistance, meaning that as they warm up, their resistance drops, and they would otherwise draw an uncontrolled amount of power from the source. This would cause them to overheat and burn out almost instantly. The ballast acts as a current limiter, ensuring a stable and safe operating level.
There are two main types of ballasts. Older magnetic ballasts use coils and are known for their inefficiency, audible hum, and tendency to cause light flicker. More modern electronic ballasts use solid-state components, operate at a higher frequency to eliminate visible flicker, and are more energy-efficient.
How Do LEDs Get Power Differently?
LEDs, or Light Emitting Diodes, are semiconductor devices, not gas-discharge lamps. They operate on low-voltage Direct Current (DC), whereas building power grids supply high-voltage Alternating Current (AC). This fundamental difference means they cannot use a ballast. Instead, they require a component called an LED driver.
The LED driver performs two essential functions that are distinct from a ballast. Its first job is to convert the high-voltage AC power from the wall outlet (e.g., 120V or 277V) into the low-voltage DC power that the LED chips need to operate (e.g., 12V or 24V).
Its second function is to regulate the power delivered to the LEDs. LEDs are sensitive to fluctuations in current and voltage. A driver provides a constant, controlled output, either as Constant Current (CC) or Constant Voltage (CV), protecting the LEDs from power variations that would otherwise shorten their lifespan or cause performance issues.
Ballast vs. Driver at a Glance
A fluorescent ballast and an LED driver are not interchangeable. A ballast provides a high-voltage AC spike to start a lamp and then regulates AC current. An LED driver converts high-voltage AC to low-voltage DC and then precisely regulates the DC output to match the LED's specific requirements. The ballast is a legacy component for an obsolete technology, while the driver is the essential power source for modern solid-state lighting.
Can You Put LED Tubes in a Fluorescent Fixture?
It is possible to replace fluorescent tubes with LED tubes in existing fixtures. This process, known as retrofitting, is a common way to upgrade to more efficient lighting without replacing the entire fixture housing. However, the method of conversion determines the fixture's future performance, efficiency, and maintenance needs. There are three main approaches, commonly designated as Type A, Type B, and Type C.
Type A LED Tubes: The Plug and Play Option
Type A tubes are designed to be "plug and play," meaning they are compatible with the fixture's existing electronic ballast.
The installation process involves simply removing the old fluorescent tube and inserting the new Type A LED tube. There is no rewiring required.
The primary advantage is the speed and simplicity of installation. It can be done without hiring an electrician, minimizing labor costs and downtime.
The disadvantages are significant. The system's lifespan is now dictated by the ballast, not the long-life LED tube. When the ballast fails, the light goes out, and the ballast must be replaced. The ballast also continues to consume power, creating a parasitic energy loss that reduces the overall efficiency savings of the LED conversion. Finally, compatibility issues between the LED tube and a specific ballast model can cause flickering or premature failure.

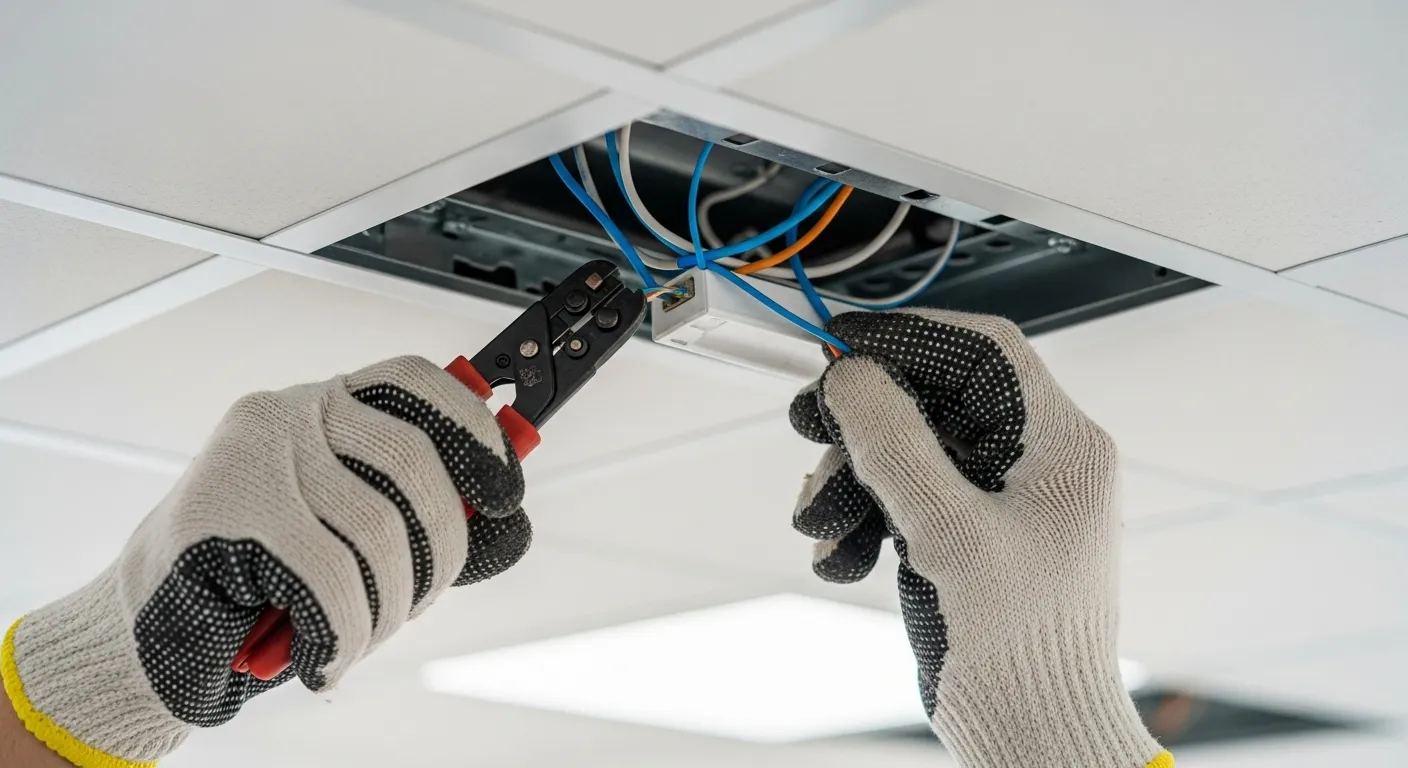

Type B LED Tubes: The Ballast Bypass Method
Type B tubes are wired directly to the building's line voltage, completely removing the ballast from the electrical circuit.
Installation requires a qualified electrician to open the fixture, disconnect and remove the ballast, and rewire the lamp sockets (often called "tombstones") directly to the main power source.
The advantages include maximum energy efficiency, as there is no power loss from a ballast. Reliability is also greatly improved by eliminating a common point of failure. This means no future costs associated with ballast replacements.
The disadvantages are the higher initial installation cost and complexity, as it requires professional electrical work. The modification is also permanent, and the fixture must be properly labeled to prevent someone from accidentally installing a fluorescent tube in the future, which would create a safety hazard.
Type C LED Tubes: The External Driver System
The Type C method is a complete system replacement within the existing fixture. It involves removing the old ballast and installing a new, external LED driver that is specifically matched to the Type C LED tube.
The process is the most involved, as it requires replacing the ballast with a new driver and wiring it to both the power source and the lamp sockets.
This approach delivers the highest efficiency, longest lifespan, and best performance. Because the driver and tube are engineered to work together as a system, it allows for advanced features like smooth, flicker-free dimming and integration with lighting controls.
The main disadvantage is that it has the highest initial material and labor cost of the three retrofit options.
Feature | Type A (Plug & Play) | Type B (Ballast Bypass) | Type C (External Driver) |
|---|---|---|---|
Installation Complexity | Low. Direct swap, no electrician needed. | Medium. Requires rewiring by a qualified electrician. | High. Requires ballast removal and new driver installation. |
Upfront Cost | Lowest (tube only). | Medium (tube + labor). | Highest (tube + driver + labor). |
Energy Efficiency | Moderate. Ballast continues to consume power. | High. No energy loss from a ballast. | Highest. System is fully optimized. |
Long-Term Reliability | Low. Dependent on the lifespan of the existing ballast. | High. Ballast, a key failure point, is eliminated. | Excellent. Uses a new, dedicated, long-life driver. |
Best For | Quick, low-cost upgrades where installation disruption must be minimized. | Maximizing long-term energy savings and minimizing future maintenance. | Applications demanding the highest performance, control, and longevity. |
What Happens If You Don't Bypass the Ballast?
Choosing the Type A (plug-and-play) method as a long-term solution means accepting a fundamental compromise. This creates what can be called a "compatibility paradox": a long-life LED tube, rated for 50,000 hours or more, becomes entirely dependent on an aging ballast with a much shorter lifespan. When the ballast inevitably fails, the expensive LED tube becomes useless until the ballast is replaced, negating the low-maintenance benefit of LEDs.
Furthermore, there is a hidden financial cost. The ballast continues to draw power simply to operate, a phenomenon known as parasitic draw. This can reduce the total energy savings of the LED conversion by 10% or more, an amount that accumulates into a significant expense over the life of the installation, especially in large facilities.
What Are the Risks of Bypassing a Ballast?
The ballast bypass process for Type B installations introduces serious safety considerations if not performed correctly. The primary hazard is that line voltage (e.g., 120V or 277V) is now present directly at the lamp sockets. This creates an electrocution risk for anyone who mishandles the fixture or attempts to change the tube without de-energizing the circuit.
A second critical danger is known as "snap-back." This occurs when an unsuspecting maintenance worker later attempts to install a standard fluorescent tube into the rewired fixture. Because the fixture is now wired for direct line voltage, inserting a fluorescent tube will cause an immediate electrical short, which can result in fire, damage to the electrical system, or injury.

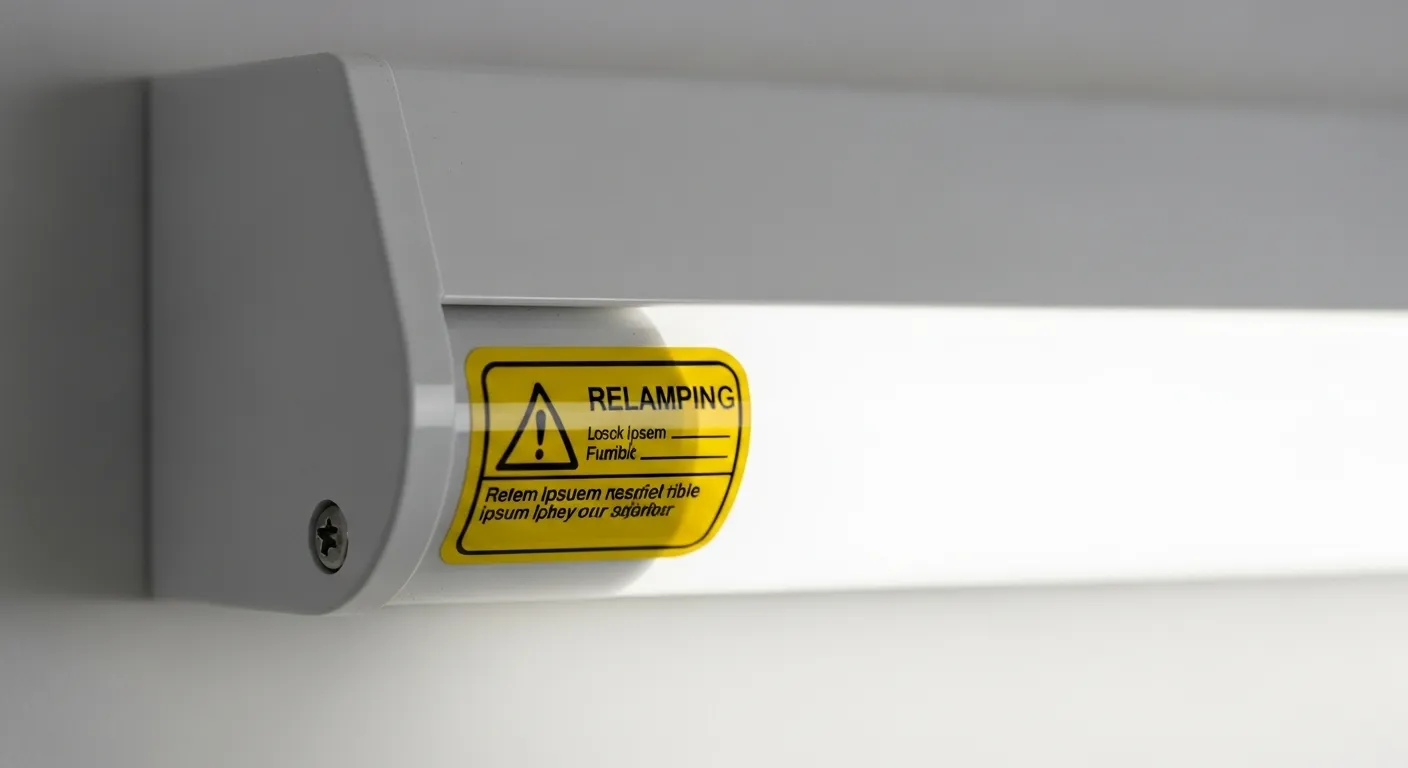

To prevent this, safety standards such as UL 1598C mandate that a relamping warning sticker must be applied to the fixture after the conversion. This label clearly states that the fixture has been modified and is only suitable for specific LED tubes, warning against the use of fluorescent lamps.
Safety Warning: Ballast Bypass Requires a Professional
Rewiring electrical fixtures is not a do-it-yourself task. A ballast bypass must only be performed by a qualified and licensed electrician. This ensures the work is done safely, prevents the risk of electric shock or fire, and guarantees compliance with all local and national electrical codes.
Why Do Some Cheaper LEDs Flicker or Fail?
Flickering, strobing, or premature failure in LED products is almost always the fault of a low-quality or failed driver. In retrofit scenarios, this problem can manifest in several ways.
With Type A tubes, flickering often occurs when the LED tube is not fully compatible with the specific electronic ballast in the fixture. As the ballast ages and its components degrade, this incompatibility can worsen, leading to strobing.
With Type B tubes, the AC-to-DC driver is integrated inside the tube itself. In cheaper products, these internal drivers use subpar components that cannot properly smooth the electrical current, leading to rapid, disorienting strobing. This can also happen when the internal driver overheats and fails prematurely.
Even flicker that is too fast to be seen by the naked eye, known as invisible flicker, can have negative physiological effects, including headaches, eye strain, and fatigue. Specifying products with high-quality drivers that are tested and certified to prevent these temporal light artifacts is essential for creating a comfortable and productive environment.
When to Choose a Dedicated LED Fixture
For new construction projects or major renovations, choosing a dedicated LED fixture is always the superior alternative to retrofitting. These fixtures are engineered from the ground up as a complete, integrated system. The housing, LED modules, and driver are all designed to work together for optimal performance.
The benefits are numerous. The driver is often thermally separated from the light source, which dramatically improves heat dissipation and extends the lifespan of all components. Compatibility is guaranteed, and the entire fixture is covered by a single, system-level warranty. This approach completely eliminates all the legacy component issues, maintenance liabilities, and performance compromises associated with retrofitting old fluorescent housings.
How Systems Like LED Profiles and Track Lights Work
Architectural lighting products such as LED profiles, linear lights, and track systems are inherently "ballast-free." They are designed from the start to operate with dedicated, high-quality external drivers, which are also referred to as power supplies.
This design philosophy directly solves the reliability and performance problems found in retrofit solutions. By using a robust external driver, these systems ensure maximum longevity, superior light quality, and advanced control capabilities. The driver is a serviceable component that can be replaced if needed without discarding the entire light fixture, providing a truly sustainable and high-performance lighting solution.
Frequently Asked Questions
Do LED strip lights need a ballast?
No, LED strip lights do not use a ballast. They are low-voltage DC products and require a power supply, which is a type of LED driver. This power supply converts the high-voltage AC from your wall outlet into the low-voltage DC (typically 12V or 24V) that the strip light needs to operate.
What is a shunted vs non-shunted tombstone?
A tombstone is the socket that holds the end of a tube light. In a shunted tombstone, the two electrical contacts are internally connected, creating a single electrical path. In a non-shunted tombstone, the two contacts are separate. This distinction is critical for ballast-bypass (Type B) installations. Single-ended Type B tubes require non-shunted tombstones, while double-ended tubes can often work with either.
Can I use a dimmer with my new LED tubes?
It depends on the type of LED tube and the existing system. For Type A tubes, dimming is only possible if the existing ballast is a dimming ballast and is compatible with the LED tube. Most Type B tubes are not dimmable. The best and most reliable dimming performance comes from Type C systems, which use an external driver specifically designed for dimming.
How long does a fluorescent ballast typically last?
The lifespan of an electronic fluorescent ballast varies widely based on quality, operating hours, and environmental conditions, but a typical range is 3 to 7 years. This is significantly shorter than the 50,000-hour (or 10+ year) lifespan of a quality LED tube, which is why relying on an old ballast in a Type A retrofit is a poor long-term strategy.
Do I need an electrician to change to LED lights?
For a simple Type A (plug-and-play) tube replacement, you generally do not need an electrician. However, for any installation that involves altering the fixture's wiring, such as a Type B (ballast bypass) or Type C (external driver) conversion, you must hire a qualified electrician. This is required for safety and to ensure compliance with electrical codes.
What does the relamping sticker on a fixture mean?
The relamping sticker is a mandatory safety label applied to a fixture after it has been modified for a ballast-bypass (Type B) LED tube. It serves as a critical warning that the fixture is no longer wired for standard fluorescent tubes and that installing one could cause an electrical short, fire, or other hazards.
