Beyond simple illumination, commercial restroom lighting shapes user perception, ensures safety, and drives operational efficiency. A well-engineered lighting strategy transforms these spaces from mere utilities into integral components of a facility's overall design and brand identity, influencing everything from cleanliness perception to energy expenditure. Understanding the intricate interplay of regulations, user experience, and operational demands allows for the creation of environments that are both compliant and inviting.
Navigating Regulations and Safety Standards for Restroom Lighting
The selection and installation of lighting fixtures in commercial restrooms are subject to a complex framework of national and regional regulations. These standards govern energy consumption, environmental resilience, impact resistance, and illuminance levels, all designed to ensure safety, efficiency, and accessibility. Adherence to these mandates is not merely a legal obligation; it forms the bedrock of a reliable and high-performing lighting system.
Understanding Energy Codes and Controls
Modern building energy codes, such as the International Energy Conservation Code (IECC) and ASHRAE 90.1, necessitate sophisticated control systems. These codes aim to reduce electricity consumption and operating costs. They mandate the use of occupancy and vacancy sensors, which automatically turn off lights when a space is unoccupied or dim them when sufficient daylight is present. Regional mandates, like California’s Title 24, often impose even stricter requirements, frequently demanding automatic shut-off within 20 minutes of vacancy.
For these control systems to function effectively and predictably, the choice of sensor technology is paramount. High-quality dual-technology sensors are often required to accurately detect occupancy under various conditions, preventing the "false triggers" or missed activations that can undermine energy savings and user comfort. The process of commissioning, which involves calibrating these sensors, is crucial.
While manufacturers project substantial energy savings, the actual realized savings are directly tied to how well sensors are tuned, including time delay settings and sensitivity. Proper commissioning ensures the system performs as intended, maximizing energy efficiency and preventing user frustration.
Ensuring Fixture Suitability for Wet Environments
Commercial restrooms are inherently high-moisture environments, characterized by humidity, steam, and the frequent use of water jets during cleaning. Lighting fixtures must therefore possess specific ratings for moisture ingress protection to ensure longevity and safety.
In North America, the UL Location Rating System, defined by UL 1598, differentiates between Damp and Wet locations. A Damp rating suffices for general restroom areas, including stalls and circulation zones, where humidity is present but direct water spray is not anticipated. A Wet rating is mandatory near showers, under sprinklers, or where cleaning hoses or jets might directly contact the fixture.
For global projects or when a more precise understanding of water protection is required, the IEC 60529 IP (Ingress Protection) Rating System is utilized. This system specifies protection against both dust and water. European standards further define specific bathroom zones:
- Zone 0: Inside the bath or shower area. Fixtures here must be low voltage (maximum 12V) and rated IP67, indicating protection against immersion.
- Zone 1: The area directly above the bath or shower, up to 2.25 meters from the floor. A minimum rating of IP44 is required, though IP65 is strongly recommended for superior long-term protection against spray and condensation.
- Zone 2: The area stretching 0.6 meters beyond the perimeter of the bath or shower and up to 2.25 meters from the floor. Fixtures must possess a minimum rating of IP44. This zone covers most standard sink and vanity areas, where splashing is a risk.
While IP44 meets the minimum requirement for Zone 1 and 2, specifying IP65-rated linear profiles and strip lights is a more robust choice for optimal longevity and minimized fixture failure. Commercial cleaning protocols often involve aggressive chemical agents and pressure washing or hosing, making the enhanced protection of IP65 a practical necessity against water jets and dust ingress.
Specifying Impact Resistance for Public Spaces
In high-traffic public, retail, and institutional restrooms, lighting fixtures are susceptible to potential vandalism or accidental impacts. The International IK rating scale quantifies a fixture’s resistance to mechanical impact, measured in joules. This rating is crucial for ensuring the physical integrity and continued operation of lighting systems in demanding environments.
- IK08: For typical public restrooms where accidental impacts or moderate vandalism might occur, specifications should demand an impact resistance of IK08, which provides protection against a 5-joule impact.
- IK10: In high-risk or vandal-prone areas, such as correctional facilities or unsupervised public spaces, the highest rating, IK10, is often required. This rating signifies protection against a 20-joule impact, designed to withstand intentional abuse.
Vandal-resistant fixtures must be sealed and robust, often combining a high IP rating (e.g., IP65) with an IK rating (IK10) to ensure they endure both physical and environmental punishment without compromising performance. This combination drives the preference for heavy-gauge, sealed linear luminaires and profiles engineered for high-abuse institutional applications.
Meeting Illuminance and Accessibility Requirements
Illuminance levels must be carefully calibrated to meet safety and task requirements, while also adhering to accessibility guidelines. The Illuminating Engineering Society (IES) provides recommended footcandle (fc) values, which quantify the density of light necessary for occupant safety and task performance.
- General Circulation and Stalls: These areas require lower maintained horizontal illumination, typically averaging 5 fc, with a recommended range of 2.5 to 10 fc. The focus here is on safe navigation and general visibility.
- Vanity/Grooming Areas: Due to focused activities like shaving or makeup application, these areas require significantly higher light levels. The IES recommends a maintained horizontal average of 15 fc, but critically, a maintained vertical average of 20 fc. Achieving this vertical illuminance is essential for mitigating shadows and ensuring accurate grooming.
The Americans with Disabilities Act (ADA) imposes specific requirements related to controls, egress paths, and visual clarity. Emergency egress lighting is mandatory, requiring fixtures to provide an average of 1 fc on the egress path for 90 minutes of backup power. Restroom signage, including permanent room labels and tactile elements, is also subject to specific lighting criteria for visual accessibility. Signs must utilize a non-glare finish and display a high-contrast relationship between characters and background color.
Restroom Zone/Application | IES Target (Maintained fc) | UL Location / Min. IP Rating | Recommended IK Rating | Key Function |
|---|---|---|---|---|
General Circulation/Stalls | 5 fc (2.5–10 fc) | UL Damp / IP20 (Min.) | IK07 | Navigation, Ambient |
Vanity/Sink Area (Task) | 15 fc Horiz. / 20 fc Vert. | UL Damp/Wet / IP44 (Min.) | IK08 | Grooming, Task |
Showers/Cleaning Spray | Approx. 10 fc (100 lux) | UL Wet / IP65–IP66 | IK08–IK10 | Safety, Durability |
High-Abuse Public Areas | Varies by task | UL Wet / IP65+ | IK10 | Vandal-Resistance, Robust Protection |
Crafting the User Experience with Light Quality
Beyond meeting regulatory benchmarks, the quality of light profoundly influences the user experience in commercial restrooms. It shapes perceptions of cleanliness, luxury, and personal appearance. Poor lighting often leads to user dissatisfaction, particularly in vanity areas, where unflattering or harsh illumination can detract from the overall facility experience.
The Impact of Light Quality on Perception
Lighting extends beyond mere visibility; it is a powerful tool for shaping perception. In a commercial restroom, lighting influences how users perceive the cleanliness of the space, its level of luxury, and even their own appearance. Harsh, poorly distributed light can make a pristine restroom feel uninviting and make users feel less confident about their grooming. Conversely, well-designed lighting can elevate a functional space into a comfortable and even luxurious environment. Addressing common user dissatisfaction with unflattering or harsh lighting is a direct path to enhancing customer satisfaction and reinforcing brand image.
Strategic Correlated Color Temperature (CCT) Selection
Correlated Color Temperature (CCT), measured in Kelvin (K), dictates the emotional and functional tone of a space. Strategic CCT selection should align with the commercial facility’s brand identity and the desired user experience.
- Warm (3000K): This CCT creates a relaxing, spa-like environment, often favored in high-end hospitality or intimate settings where comfort and tranquility are priorities.
- Neutral (3500K): Offering a balanced, professional aesthetic, 3500K is commonly specified for office settings. It provides a clean yet comfortable light that supports focus without being overly stark.
- Cool (4000K): This CCT provides a crisp, modern feel that enhances the perception of cleanliness. It is well-suited for retail spaces, healthcare facilities, or high-utility commercial areas where hygiene and visual acuity are paramount.
Designers must also consider the psychological effects of color temperature. In spaces with generally low light levels, an excessive use of cool colors can inadvertently make the environment feel dull, dark, and potentially affect mood. The chosen CCT should complement the overall interior design and functional purpose of the restroom.

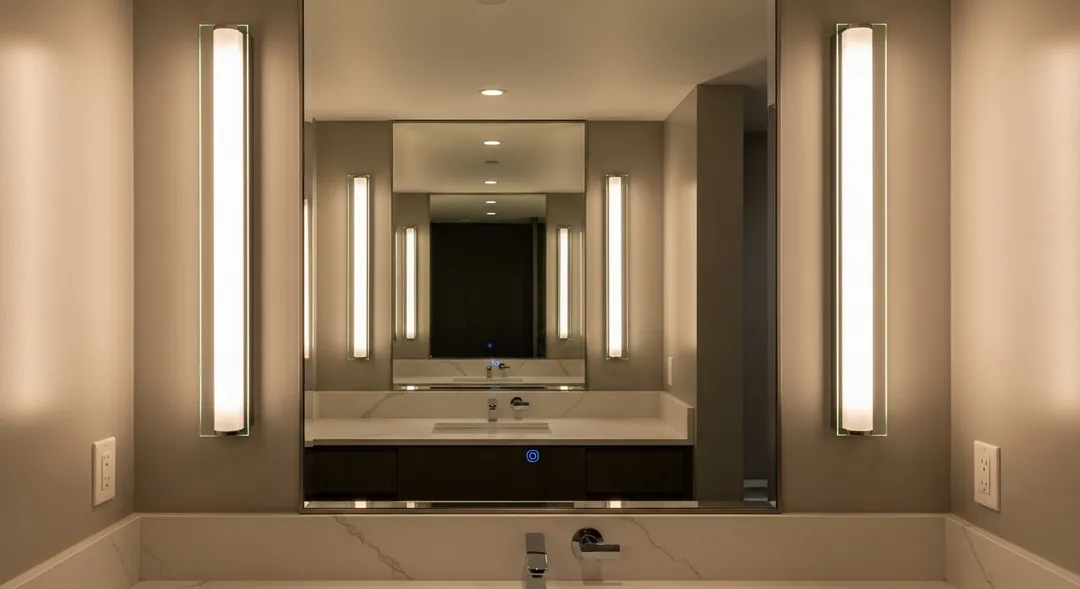

Achieving Accurate Color Rendering with TM-30
Color rendering is a critical component for user satisfaction, particularly at the vanity. While a Color Rendering Index (CRI) of 90 or higher is widely accepted as a benchmark for quality commercial illumination, the traditional CRI metric, based on only eight color samples, has limitations, especially in faithfully rendering human skin tones.
The Illuminating Engineering Society (IES) developed the TM-30 standard as a more comprehensive and reliable metric for assessing color fidelity. The TM-30 report evaluates 99 different color samples, offering two key indices for specifiers:
- Rf (Fidelity Index): Measures the accuracy of the color compared to a reference source. A target of Rf $\ge$ 85 is recommended for high fidelity, ensuring colors appear true to life.
- Rg (Gamut Index): Measures the saturation or vibrance of the colors. A value between 95 and 105 ensures skin tones appear natural yet vibrant, avoiding a washed-out or overly saturated look.
Prioritizing TM-30, especially at the vanity, directly links to enhancing the guest experience. User feedback frequently highlights dissatisfaction with harsh lighting that creates unflattering shadows. In contemporary high-end design, the restroom is increasingly viewed as an extension of the brand experience, with architectural design and lighting collaborating to create an "immersive cinematic experience" or even a "selfie moment."
Light quality that makes the user look good, enabled by high-fidelity (Rf) and vibrant gamut (Rg) illumination, directly translates into superior customer satisfaction and positive engagement with the space. Specifying LED products with verified TM-30 performance is an investment in human experience and brand image.
Implementing Layered Lighting Design
A complete commercial restroom design employs three essential layers of light: ambient, task, and accent. Layered lighting provides depth, dimension, and the flexibility to adjust the room’s mood and functionality.
- Ambient Lighting: This layer provides the general illuminance necessary for circulation and safety, meeting the IES requirement of approximately 5 fc. It is often delivered via recessed downlights, recessed or surface-mounted linear fixtures, or flat LED panels in drop ceilings, ensuring uniform light distribution across the space.
- Task Lighting: This layer focuses specifically on the vanity for grooming activities. Many traditional commercial designs fail here by relying solely on overhead downlights. This creates a fundamental issue: the light source is perpendicular to the face, causing deep shadows beneath the eyes, nose, and chin. To meet the IES requirement for 20 fc of vertical illumination, task lighting must be positioned vertically on either side of the mirror or integrated into the mirror itself. Linear LED strips and dedicated vertical linear sconces are optimal solutions, delivering flattering, shadow-free illumination.
- Accent Lighting: Used strategically, accent lighting emphasizes architectural materials, artwork, or high-end wall coverings. This layer helps convey a specific brand message and creates a memorable, distinctive environment, adding visual interest and depth.
The Problem with Overhead-Only Vanity Lighting: Relying exclusively on overhead downlights for vanity areas creates unflattering shadows beneath the eyes, nose, and chin. This occurs because the light source is perpendicular to the user's face, failing to provide the necessary vertical illumination for accurate grooming. Effective vanity lighting requires light sources positioned vertically, typically on either side of the mirror, to ensure shadow-free and flattering illumination.
Driving Operational Efficiency and Return on Investment
For facility managers, lighting decisions are not purely aesthetic; they are fundamentally operational and financial. High-quality LED systems, particularly those integrated with smart controls, offer compelling returns on investment by mitigating the core challenges of high workload, reactive maintenance, and budgetary constraints.
The Financial Imperative of High-Performance LED Systems
The financial analysis strongly supports the transition from traditional light sources to high-efficacy LED solutions.
- Significant Energy Cost Reduction: Lighting typically accounts for a substantial portion (20–30%) of a commercial building’s electricity bill. Upgrading to LEDs combined with modern controls can achieve energy savings of up to 75%. Furthermore, the reduction in heat load from efficient lighting systems can decrease HVAC consumption by an additional 15% to 30%, contributing to overall building energy savings.
- Substantial Maintenance Cost Savings: Labor costs associated with maintenance are dramatically reduced. High-quality linear LED systems and components are rated for lifespans often exceeding 50,000 hours, which is three times longer than fluorescent lamps and up to 25 times longer than incandescent or halogen lamps. This longevity directly reduces the frequency of replacements and the labor required to service often hard-to-reach restroom fixtures, minimizing disruption and operational costs.
- Typical Payback Periods and Incentives: Due to these substantial savings, typical payback periods for integrated smart LED lighting upgrades range efficiently from 18 months to 3 years. These projects frequently qualify for utility incentives and increase the asset value of the property, aiding in certifications like LEED or WELL, further enhancing their financial appeal.
Leveraging Smart Controls for Predictive Maintenance
A persistent challenge for facility managers is managing reactive maintenance triggered by unexpected failures, coupled with an extreme workload that often prevents proactive strategic planning.
The integration of Networked Lighting Controls (NLCs) facilitates a fundamental shift from reactive to predictive maintenance. These systems utilize integrated sensors, controllers, and IoT connectivity to gather detailed operational data, such as real-time usage and "hours on" for individual luminaires. By analyzing this data, the system can flag a fixture in a high-usage area, such as a core restroom, as needing preemptive replacement based on its predicted end-of-life, before catastrophic failure occurs. This same principle applies to emergency lighting components, allowing facility managers to monitor battery life status remotely and schedule replacements before compliance is jeopardized.
The mandated use of occupancy sensors for lighting control provides the essential technological infrastructure for this predictive model. Once the sensors and the communication network are in place, the lighting infrastructure is leveraged as an intelligent data node for the broader Building Management System (BMS). The sensors, initially installed to save energy by detecting presence, subsequently provide continuous, granular data that extends beyond lighting.
Broader Facility Management Benefits of Integrated Lighting
Transforming lighting infrastructure into an intelligent data node for the Building Management System (BMS) offers extensive benefits beyond energy savings and predictive maintenance.
Integrated lighting systems can monitor occupancy rates, providing insights into restroom usage patterns. They can signal when fixtures are out of service, detect when consumables like soap or paper towels need replenishment, and even integrate with security systems, for example, by maximizing illumination during a security breach. This integration converts the lighting system from a simple utility into a central operational tool, maximizing the efficiency of cleaning staff and asset tracking, thus providing a layered, cross-departmental justification for the capital investment.
ROI Factor | Benefit to Facility Manager | Technical Requirement | Operational Data Leveraged |
|---|---|---|---|
Energy Efficiency | Up to 75% operational cost reduction | High-efficacy LED, Occupancy/Vacancy sensors | Time-of-day usage profiles |
Maintenance Reduction | Predictable scheduling, reduced labor | 50,000+ hour lifespan, Integrated battery monitoring | Fixture hours on, component health |
Health & Safety | Improved egress pathway safety and security | UL 924 compliance, Security system integration | Sensor presence detection, battery status |
Operational Optimization | Efficient cleaning/replenishment schedules, asset tracking | IoT-enabled fixture reporting, BMS integration | Occupancy rates, consumable levels, fixture status |
Selecting Advanced Lighting Solutions for Restrooms
The inherent flexibility and superior optical control of linear LED technology directly address the aesthetic failures and operational demands of commercial restroom lighting. The transition to high-quality LED profiles, strips, skirting, and track systems provides engineered solutions for every functional zone within the restroom.
Linear LED Systems for Architectural Integration
Linear light systems, whether recessed or surface-mounted, offer continuous, uniform illumination that integrates cleanly into architectural designs. These systems effectively solve the problem of uneven, "spotted" ambient light often created by a grid of individual downlights. They deliver diffuse light that can evenly wash the ceiling or walls, enhancing spatial definition. For water closet areas, a comfortable, illuminated space is achieved through indirect light. Wall-mounted, direct-indirect linear fixtures provide excellent general and localized task illumination. Specifiers often recommend positioning downlights or linear wall washes approximately two feet away from the back wall to ensure appropriate grazing illumination.
High-CRI LED Strips for Task and Accent
High-density LED strip lighting is essential for achieving the required high-CRI and TM-30 performance in task areas, particularly at the vanity. The most effective strategy for removing unflattering shadows is the installation of high-CRI linear LED strips housed within minimal profile extrusions. When installed vertically on both sides of the mirror, these strips deliver the necessary 20 fc of vertical light required by IES standards, ensuring shadow-free grooming conditions and providing the "flattering glow" sought in modern, high-end commercial spaces.
In this application, durability and compliance are critical. LED strips used in splash-risk zones must have an inherent IP rating, such as IP65, and must be securely mounted within profiles designed for moisture protection. Power supplies, or drivers, must be reliable, UL-listed, and situated in easily accessible, dry locations to facilitate any necessary maintenance.
LED Skirting Board for Safety and Aesthetics
LED skirting board systems utilize linear profiles at floor level to integrate light as an architectural material. This application offers dual benefits: functional safety and high-end aesthetic value. At night, LED skirting provides a gentle, non-glaring navigational path, which is crucial for safety and ADA considerations, eliminating the need for harsh overhead lighting.
Aesthetically, by establishing a continuous horizontal light band, LED skirting visually extends the space, achieving a contemporary "floating wall" effect that enhances the perception of depth and luxury, highly desirable in hospitality and premium commercial venues.
For restroom applications, specifiers must prioritize moisture-resistant skirting variants that meet or exceed IP65 ratings. This ensures the system’s structural integrity and protects the electronics from high humidity and routine floor cleaning processes. The market trend toward thinner, aluminum-alloy skirting profiles also supports minimalist design goals while maintaining superior heat dissipation and structural strength.
Under Cabinet Lighting for Localized Task Illumination
Under cabinet lighting involves mounting linear fixtures beneath vanities or counters, a technique common across commercial settings. This solution specifically addresses the creation of shadows cast onto countertops by overhead lighting.
By shining light out from under the cabinet and onto the surface, under cabinet lighting provides crucial localized task lighting, ensures bright counter surfaces, and adds a soft, diffused light that enhances the overall appeal of the space. Like LED strips, under cabinet fixtures should be high-quality linear components housed in IP-rated profiles suitable for the restroom environment.
Track Lighting for Flexible High-End Accents
While not a standard solution for general restroom illumination, track lighting systems offer unmatched flexibility for high-end hospitality and retail restrooms where adjustable accent lighting is desired. Track systems allow for the integration of adjustable LED spotlights and projectors, which can be precisely configured to highlight architectural elements, artistic features, or specific points of interest.
In luxury settings, this flexibility supports the goal of setting a distinctive mood and conveying a specific brand message. Modern magnetic track systems allow for seamless integration of linear lighting profiles alongside adjustable accent heads, creating a sophisticated and adaptable system.
LED Panels and Troffers for Utilitarian Ambient Solutions
In commercial buildings utilizing drop-ceiling systems, standard LED panels and recessed troffers remain the primary ambient lighting solution for general circulation areas. These fixtures are highly valued by facility managers for their efficiency, long life (50,000+ hours), and low maintenance, serving as excellent replacements for traditional fluorescent tubes.
For restroom use, even these standard ambient fixtures must possess an appropriate IP rating, such as IP44 or IP54, if they are located near zones with splash risk, ensuring their suitability for the environment.
Key Considerations for Commercial Restroom Lighting
Optimizing commercial restroom lighting requires a holistic approach that synthesizes regulatory compliance, operational efficiency, and a superior user experience. This involves a deliberate selection of lighting solutions and design strategies.
First, prioritize robust, sealed fixtures with high IP and IK ratings for longevity and safety. This protects against moisture ingress from cleaning protocols and humidity, as well as potential physical impacts in public spaces.
Second, advocate for integrated linear LED solutions as an engineered necessity. These systems offer continuous, uniform illumination and provide the flexibility required for effective ambient, task, and accent lighting.
Third, leverage Networked Lighting Controls for data-driven facility management and predictive maintenance. This transition from reactive to proactive maintenance significantly reduces operational costs and extends fixture lifespan.
Fourth, focus on high-CRI and TM-30 performance to enhance user perception and brand image. Accurate color rendering, especially for skin tones at the vanity, directly contributes to user satisfaction.
Finally, strategic specification ensures the restroom contributes positively to building efficiency and user engagement, transforming it from a mere utility into a high-performance asset.
Frequently Asked Questions
Do I need IP44 or IP65 for a commercial bathroom?
For commercial bathrooms, IP44 is the minimum requirement for areas prone to splashing, such as around sinks and above showers. However, IP65 is strongly recommended for enhanced protection against water jets and high humidity, particularly in shower areas and where aggressive cleaning methods are used.
Is 3000K or 4000K better for commercial restrooms?
The choice between 3000K and 4000K depends on the desired ambiance. 3000K creates a warmer, more relaxing atmosphere suitable for hospitality or spa-like settings. 4000K provides a cooler, crisper light that enhances the perception of cleanliness and is often preferred for retail or high-utility commercial spaces.
What are the regulations for commercial bathroom lights?
Commercial bathroom lighting is governed by energy codes like IECC and ASHRAE 90.1, which mandate occupancy sensors. It also requires specific UL or IP ratings for moisture protection, IK ratings for impact resistance, and adherence to IES illuminance levels and ADA accessibility guidelines.
What type of lighting should you use in a commercial bathroom vanity?
For commercial bathroom vanities, use high-CRI linear LED strips or vertical linear sconces positioned on either side of the mirror. This provides essential vertical illumination, eliminating shadows and ensuring flattering light for grooming tasks.
What is the trend in commercial restroom lighting design?
The trend in commercial restroom lighting design emphasizes integrated linear LED solutions, high-fidelity color rendering (TM-30), robust IP and IK rated fixtures, and networked lighting controls for smart facility management. The goal is to create spaces that are efficient, safe, and enhance user experience.
What is the code for commercial restroom lighting?
The code for commercial restroom lighting encompasses various standards, including energy efficiency mandates (e.g., IECC, ASHRAE 90.1), electrical safety regulations (e.g., NEC), ingress protection ratings (UL, IP), impact resistance ratings (IK), and accessibility requirements (ADA).
Can I use IP44 lights in a commercial restroom?
Yes, IP44 lights can be used in commercial restrooms, particularly in Zone 2 areas around sinks and above showers, where splashing may occur. However, for areas with direct water spray or aggressive cleaning, an IP65 rating offers superior protection and is often a more durable choice.
How do occupancy sensors save energy in commercial restrooms?
Occupancy sensors save energy in commercial restrooms by automatically turning off or dimming lights when a space is unoccupied. This prevents lights from running unnecessarily, significantly reducing electricity consumption and contributing to overall building energy efficiency.
What is the importance of TM-30 for commercial restroom lighting?
TM-30 is important for commercial restroom lighting because it provides a more accurate assessment of color rendering, especially for human skin tones, compared to the traditional CRI. High TM-30 values (Rf $\ge$ 85, Rg 95-105) ensure flattering and natural-looking illumination, enhancing user perception and satisfaction.
